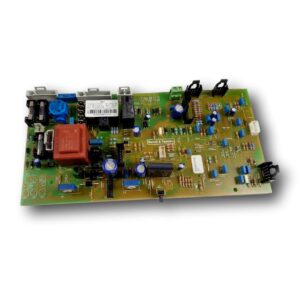

PCB Display Manaut Minox Condens 24E Bertelli & Partners DU09.10
RefurbishedManautPCBs (control boards)Bertelli & Partners

PCB Display Manaut Minox Condens 24E Bertelli & Partners DU09.10

If your boiler does not start, gets blocked, or shows erratic behavior, a technical diagnosis must confirm if you need the PCB (control board) Manaut Minox Condens 24E Bertelli & Partners. This control board is responsible for managing the ignition, burner modulation, pump, and safety features of the boiler. It is installed in models such as the Minox 24E, 24 A, 24/28 A/E, 3 24E, and 3 28E, among others. A technician must confirm through diagnosis if it is necessary to replace it when operational issues affecting the normal operation of the boiler are detected.

Type of part
PCBs (control boards)
Status
Refurbished
internal SKU
DECNOX24E
Warranty
1 year
VAT includedStock · 1 unit
Compatibility

Compatible Biasi boilers

PCB. Seven confirmed compatibilities: 24E and 24 A.

Proven compatibility

Boiler modelFamilyVerification
Biasi 24EMICONContrasted
Biasi 24 AMINOXContrasted
Biasi 24/28 A/EMINOXContrasted
Biasi 24EMINOXContrasted
Biasi 3 24EMINOXContrasted
Biasi 3 28EMINOXContrasted
Biasi CONDENS 24EMINOXContrasted

Can't see your model or have questions? The printed reference takes precedence. How to check it ·

Guide

How to check if it is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

  1. Find the reference printed on the installed part and check whether it matches the catalogue reference —. If it is not visible, do not identify the part by its shape alone.
  2. Check the full boiler model on its data plate and look for it in the model associations on this page.
  3. Compare the connections and physical body with the original part before installation.
  4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Diagnosis and fault codes

Symptoms that require diagnosis on the PCB

The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:

Common symptoms and faults

  • 01

    The screen is blank and does not display the time or the temperature.

    Cause: The display board is not receiving power or its display circuit has failed.

    Check if the rest of the boiler is working well (domestic hot water, heating); if so, the problem is with the PCB (control board).

  • 02

    The screen lights up but does not respond when touching the controls of the boiler.

    Cause: The circuit that detects the button presses on the display PCB has stopped working.

    Check for any moisture or condensation near the control panel, as it may temporarily block the response.

  • 03

    Strange symbols or lines appear on the screen instead of the temperature or the mode of the boiler.

    Cause: The display controller on the PCB is malfunctioning and not forming the characters correctly.

    Turn off and turn on the boiler again to see if the display resets; if the fault reappears upon starting, it is a fault with the PCB.

  • 04

    The screen turns off by itself after a few seconds or minutes of being on.

    Cause: A fault in the internal power supply of the display PCB does not maintain stable power.

    Note how long it takes to shut down each time; a regular pattern helps rule out a simple power cut in the installation.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical data

Data sheet for the Biasi PCB

Uniclima internal SKU
DECNOX24E
Brand
Manaut
Type of part
PCBs (control boards)
Units in stock
1 unit
Status
Refurbished
Warranty
1 year
Shipping
Delivery time shown at checkout
Return
14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

Manufacturer
Bertelli & Partners
Part code
DU09.10
Before purchasing
  • The current catalog does not list any reference for this part.
Frequently Asked Questions

Frequently asked questions about the PCB (control board)

Who manufactures the display PCB for the Biasi Minox Condens 24E?
Bertelli & Partners, according to the label marking, with the code DU09.10 printed next to the manufacturer's name.
Is this DU09.10 PCB suitable for a Biasi Minox 3 28E?
Yes, it is listed for that model and for the rest of the Minox/Micon range: Micon 24E, Minox 24 A, Minox 24/28 A/E, Minox 24E, Minox 3 24E, and Minox Condens 24E.
Can the full code on the label of this PCB for the Minox Condens 24E be read?
No; the flat cable and the angle of the photo cover part of the code and the number under the barcode.
For what fault is the display PCB of the Biasi Micon 24E replaced?
It should be checked when the display does not show information or stops responding to the boiler controls. Replacement requires a technical diagnosis.
