Vaillant VU 152/2-5 Display and Control Panel Module - Ref. 130807

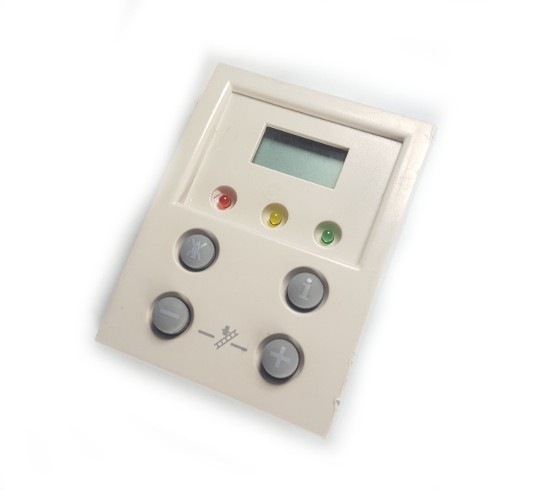

The Vaillant VU 152/2-5 display and button module - Ref. 130807 is a control PCB that manages the ignition, burner modulation, pump, and safety features of the boiler. When it fails, the boiler may not start, become locked, or exhibit erratic behavior, displaying the fault code F.66: Display failure. This module is compatible with several models, including the VUW 242/2-5 and the VU 152/2-5, among others. It is recommended to replace the part when the mentioned symptoms occur or in the event of a display failure.
VAT included
Consult via WhatsAppVaillant boilers compatible with reference 130807

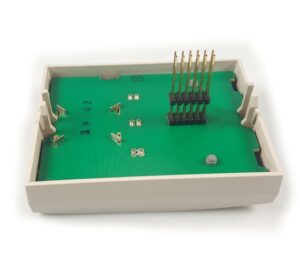

PCB with reference 130807. Ten confirmed compatibilities: VUW 242/2-5 (Turbomax Plus 824E) and VUW 282/2-5 (Turbomax Plus 828E).
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Vaillant VUW 242/2-5 (Turbomax Plus 824E) | Turbomax Plus / Pro | Contrasted |
| Vaillant VUW 282/2-5 (Turbomax Plus 828E) | Turbomax Plus / Pro | Contrasted |
| Vaillant VUW 362/2-5 (Turbomax Plus 837E) | Turbomax Plus / Pro | Contrasted |
| Vaillant Turbomax Pro 24E | Turbomax Plus / Pro | Contrasted |
| Vaillant Turbomax Pro 28E | Turbomax Plus / Pro | Contrasted |
| Vaillant VU 152/2-5 (Thermocompact 615E) | Thermocompact | Contrasted |
| Vaillant VU 202/2-5 (Thermocompact 620E) | Thermocompact | Contrasted |
| Vaillant VU 242/2-5 (Thermocompact 624E) | Thermocompact | Contrasted |
| Vaillant VU 282/2-5 (Thermocompact 628E) | Thermocompact | Contrasted |
| Vaillant VU 362/2-5 (Thermocompact 637E) | Thermocompact | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if ref. 130807 is the part for your boiler
What determines it is not the boiler model, but the reference printed on the part you already have installed.
- Find the reference printed on the installed part and check whether it matches the catalogue reference 130807. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms and faults that the PCB 130807 resolves.
The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The LCD screen remains blank or does not turn on when starting up.
Cause: The module integrates the display, indicators, and buttons in the same circuit, so a power failure affects the entire panel.
Check that the boiler is receiving power and that no fuse has blown before replacing the complete module.
- 02
The LED indicators on the panel do not light up.
Cause: These indicators depend on the same PCB as the display, so they often fail together when the module malfunctions.
Check if only some LEDs are failing or if all of them are out at the same time: a partial fault may indicate a specific component rather than the entire module.
- 03
The icon buttons do not respond when pressed.
Cause: The front buttons are integrated into the same PCB as the display and the LEDs.
Test each button separately and note which ones do not work, to determine if the fault is general or related to a specific button.
- 04
The panel does not allow consulting or adjusting any parameters, although the boiler heats normally.
Cause: The display management and combustion management are separate circuits, so the boiler can continue to operate even if the panel is faulty.
Confirm that the boiler heats and provides hot water normally: if so, the problem is focused on this front module.
Fault codes from Vaillant that this part resolves.
| Code | Fault | Diagnosis and solution |
|---|---|---|
| F.66 | Display fault | The display board or its link (I2C bus) with the main PCB is faulty. Check 5 V on the board, inspect continuity/connectors of the display harness, and if the voltages are correct, replace the display module. |
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Data sheet for the Vaillant 130807 PCB.
- Catalogue reference
- 130807
- Brand
- Vaillant
- Type of part
- PCBs (control boards)
- Units in stock
- 1 unit
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- 1-2 business days
- Return
- 14 days
